Audi Q5   Controls  Controls and displays
Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.

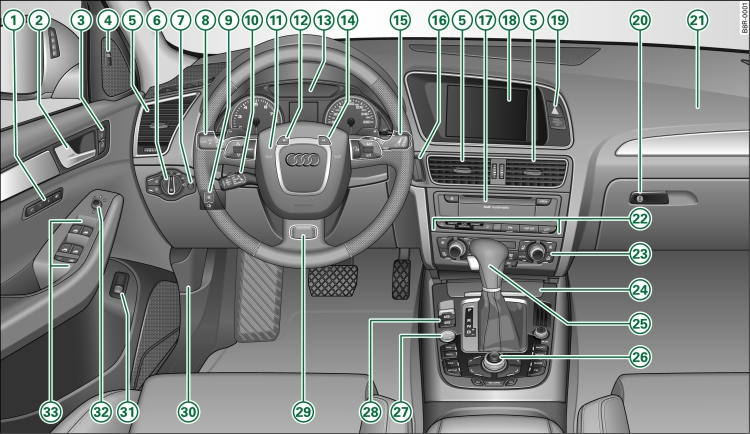

Fig. 1 Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
-1-Recall buttons
-2-Door handle
-3-Central locking switch
-4-Button for Audi side assist
-5-Air outlets with thumbwheel
-6-Light switch
-7-Instrument lighting
-8-
Control lever for:
-9-Headlight range control
-10-
Depending on equipment fitted:
-11-
Steering wheel with:
-12-SET button
-13-Instrument cluster
-14-Reset button for trip recorder
-15-
Control lever for:
-16-Ignition lock
-17-Sound system or Audi multimedia unit
-18-Sound system display 1) or MMI display
-19-
Switches/warning lamps for:
-20-Glove box
-21-Front passenger's airbag
-22-
Depending on equipment fitted:
-23-
Air conditioner, depending on equipment fitted:
-24-
Ashtray with cigarette lighter ,
-25-
Depending on gearbox fitted, gear lever or selector lever for:
-26-
Depending on equipment fitted:
-27-Start/Stop button
-28-
Switches for:
-29-Adjustable steering column (hidden behind steering wheel)
-30-Bonnet lock release
-31-Switch for releasing the tailgate
-32-Electric adjuster for exterior mirrors
-33-Electric windows
Note
  • Please refer to the separate operating manual for instructions on using the sound system or Multi Media Interface (MMI).
  • The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown in the illustration Fig. 1. However, the symbols used to identify the controls are the same.
1) Depending on the equipment fitted in your vehicle the display screen is either two-coloured or multi-coloured. As the two displays are more or less identical this Owner's Manual uses the multi-coloured displays for illustration purposes.
