Audi Q5   Controls   Heating and cooling  3-zone deluxe automatic air conditioner
Applies to vehicles: with 3-zone deluxe automatic air conditioner
Air conditioner controls

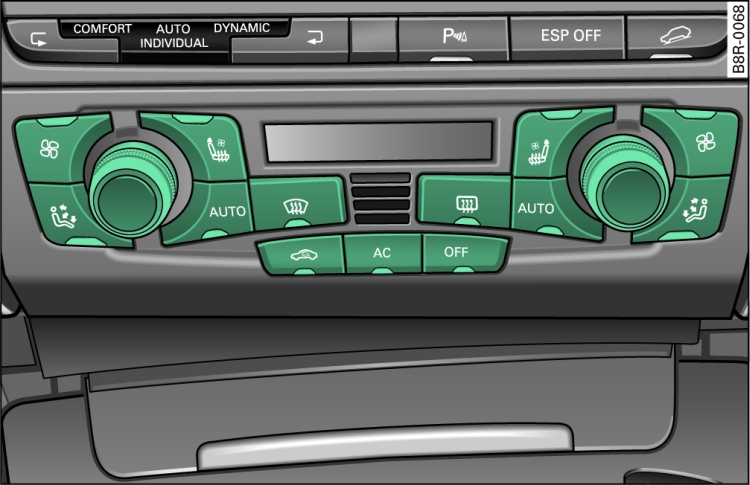

Fig. 1 Air conditioner controls
The controls for the air conditioner at a glance.
The left-hand display shows the temperature selected for the left-hand side, the right-hand display the temperature for the right-hand side.
The functions can be regulated by turning the controls and are switched on and off by briefly pressing the buttons. The LEDs in the buttons light up when the function is switched on.
Button(s)
Function
Page
OFF
Switching on and off
Link
AUTO
Automatic mode
Link
Rotary control1)
Temperature selection
Link

Blower
Link

Air recirculation mode
Link

Air distribution
Link

Defrosting windows
Link

Heated rear window
Link
AC
Switching air cooling on/off
Link
/
Seat heating / seat ventilation
Link
Note
  • The grille on the control console Fig. 1 must be kept free. Please ensure that it is not covered by stickers or similar, as the temperature sensors are located behind the grille.
1) The rotary control is also used to adjust the blower speed, air distribution and seat heating/ventilation.
