It is possible to move the seat backwards or forwards* and also to adjust the angle of the backrest.

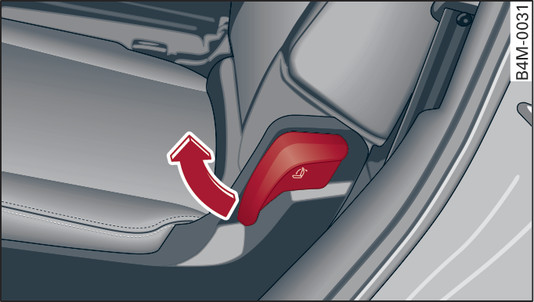

- Fig. 64 Second row of seats: Adjusting the angle of the backrest

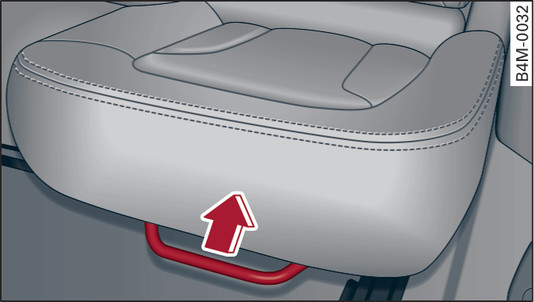

- Fig. 65 Second row of seats: Moving the seat backwards or forwards
Adjusting the angle of the outer backrest
Pull the lever upwards and push the backrest back as desired Fig. 64►. Release the lever again.
Pull the lever upwards so that the backrest folds forwards. Then release the lever again and press the backrest back to return the seat to its "normal" position.
Adjusting the angle of the centre backrest
Pull the release ring and push the backrest backwards to the desired position Fig. ►. Then let go of the ring again.
Moving the seat backwards or forwards*
Pull up the bar and move the seat forwards or backwards Fig. 65►.
Then release the bar and move the seat further until the catch engages.
WARNING
- For safety reasons, never adjust the seats while the vehicle is moving; this could lead to an accident.
- Take care when adjusting the seats. Careless use of the seat adjustment controls can cause injuries!
