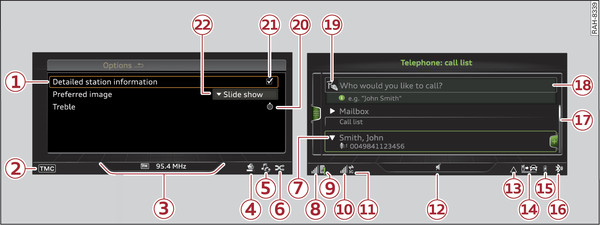

- Fig. 211 Menus and symbols
Symbol / marking | Explanation | |
-1- | Selected option | Selected function |
-2- | TMC | Reception of TMC/TMCpro/online traffic information link► |
-3- | Entertainment drawer | Information on the media source currently selected. Depending on the vehicle s equipment, you can operate media via the open entertainment drawer link► |
-4- | Jukebox* import process | Copying audio/video files to the jukebox link► |
-5- | Repeat track | The track currently playing will be repeated link► |
-6- | Random playback | All tracks in the playlist will be played in random order link► |
-7- | Arrow | Information can be called up by pressing the rotary pushbutton |
-8- | Signal strength bars for telephone | Reception strength for the telephone |
-9- | Exclamation mark on the telephone | Informs you of a new event (e.g. a call/text message/e-mail). Or: The memory on the SIM card is full. |
-10- | Signal strength bars for data connection* | Reception strength of the active connection, or PIN: Enter the SIM PIN code PUK: Enter the PUK code SIM: Insert the SIM card link► |
-11- | 2G/3G/LTE* | |
-12- | Mute function | Audio source muted link► |
-13- | Roaming | Connected mobile phone/inserted SIM card has left its mobile network |
-14- | Import procedure | Import/update of contacts in the directory/call list |
-15- | Battery | Battery charge level of the mobile phone connected |
-16- | Bluetooth* | |
-17- | Scrolling bar | Signifies a long list. You can move within lists by turning the rotary pushbutton |
-18- | Entry field | |
-19- | MMI touch* | Can be used via the MMI touch pad |
-20- | Adjuster knob | Settings for the selected function can be made by turning the rotary pushbutton |
-21- | Checkbox  | Certain functions can be switched on/off by pressing the rotary pushbutton |
-22- | Selection list | Settings for the selected function that can be called up by pressing the rotary pushbutton |
