Main components for checking and refilling

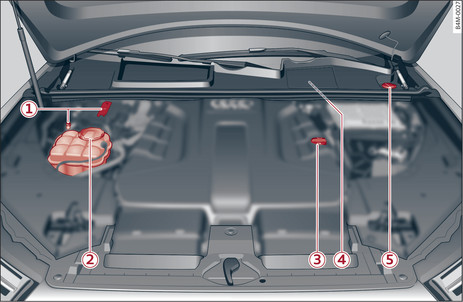

- Fig. 311 Typical locations of fluid containers and engine oil filler cap
| -1- | Jump-start terminals: under a cover (+); hexagon head (-) , “Charging the battery”► “Before starting the engine”► |
| -2- | Coolant expansion tank ( ) ► |
| -3- | Engine oil filler cap ( ) ► |
| -4- | Brake fluid reservoir ( ) ► |
| -5- | Windscreen washer container ( ) ► |
The positions of the coolant expansion tank and engine oil filler cap Fig. 311► (items -2- and -3-) may be different on some engine versions.
