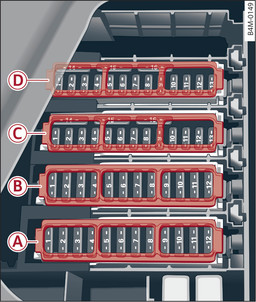

- Fig. 345 Luggage compartment, left side: Fuse carrier with plastic frames
Fuse carrier -A- (black) | |
No. | Electrical equipment |
5 | Air suspension |
6 | Automatic gearbox |
8 | Seat heating, rear |
9 | Rear lights |
10 | Belt tensioner (left-side) |
11 | Central locking system |
12 | Power-operated boot lid |
Fuse carrier -B- (red) | |
No. | Electrical equipment |
1 | Rear blower control |
2 | Sound amplifier |
3 | AdBlue |
4 | A/C control console (rear) |
5 | Towing bracket (right lights) |
6 | Towing bracket motor |
7 | Towing bracket |
8 | Towing bracket (left lights) |
9 | Towing bracket (electrical socket) |
11 | AdBlue |
12 | Third row of seats |
Fuse carrier -C- (brown) | |
No. | Electrical equipment |
2 | Telephone |
3 | Lumbar support |
4 | Audi side assist |
5 | Rear Seat Entertainment |
6 | Tyre pressure loss indicator/tyre pressure monitoring system |
8 | Remote control receiver, auxiliary heater |
9 | CD / DVD drive |
10 | TV tuner |
12 | HomeLink |
13 | Reversing camera, surround view cameras |
14 | Rear lights |
16 | Belt tensioner (right-side) |
Fuse carrier -D- (red) | |
No. | Electrical equipment |
Not used | |
