Audi A1   Controls  Controls and displays
Front cabin: Left side

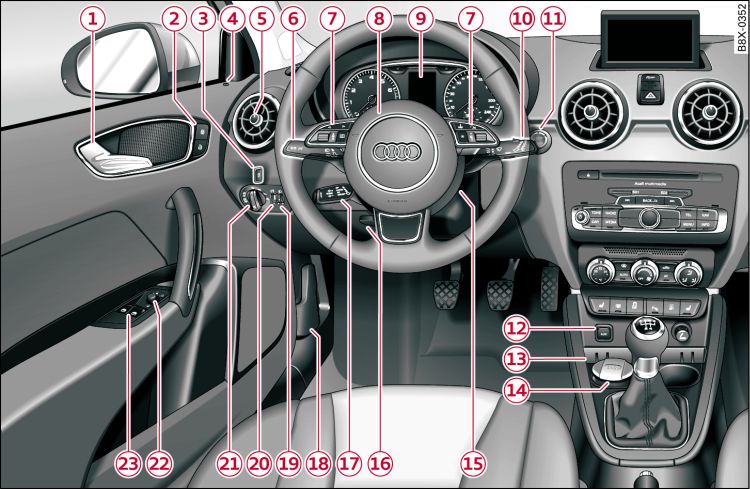

Fig. 1 Front cabin: Left side
Front cabin: Right side

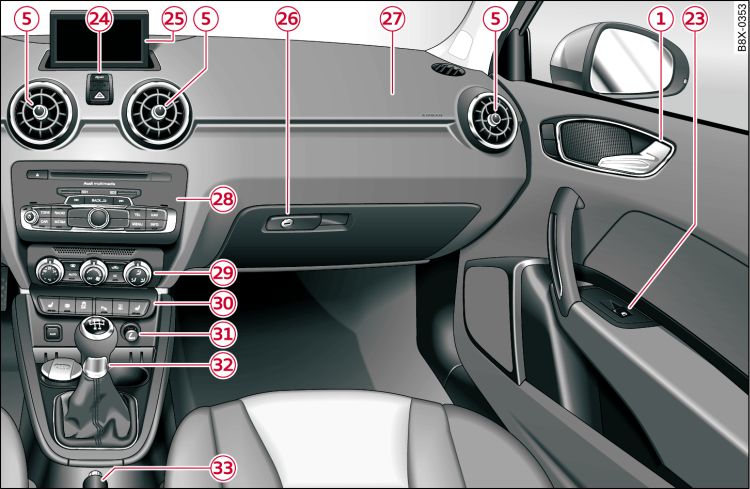

Fig. 2 Front cabin: Right side
-1-Door handle
-2-Central locking switch
-3-Button for interior monitor/tow-away protection (in side trim of door )
-4-Diode for central locking/anti-theft alarm system
-5-Air outlets
-6-Lever for turn signals and main beam headlights
-7-Controls for radio, telephone and driver information system
-8-
Steering wheel with horn and
-9-Instrument cluster
-10-
Control lever for:
-11-START ENGINE STOP button (on vehicles with electronic ignition lock)
-12-AUX IN connection
-13-Coin holder
-14-Ashtray* or location for cup holder
-15-
Steering column with:
-16-Adjustable steering column
-17-Lever for cruise control
-18-Bonnet lock release
-19-Headlight range control
-20-Instrument lighting
-21-Light switch
-22-Electric adjuster for exterior mirrors
-23-Electric windows
-24-
Switches for:
-25-Display for sound system*/MMI* or storage compartment
-26-Glove box with CD changer*
-27-Front passenger's airbag
-28-Depending on equipment fitted: Sound system or Navigation System plus (navigation system, radio)
-29-
Console for the following (as applicable):
-30-
Switches for:
-31-Cigarette lighter / electrical socket
-32-
Depending on gearbox fitted, gear lever or selector lever for:
-33-Handbrake
Note
  • Separate operating instructions are enclosed if the vehicle is equipped with a factory-fitted sound system, CD changer, AUX IN connection, or navigation system.
  • Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
  • The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown on Link. However, the symbols used to identify the controls are the same.
